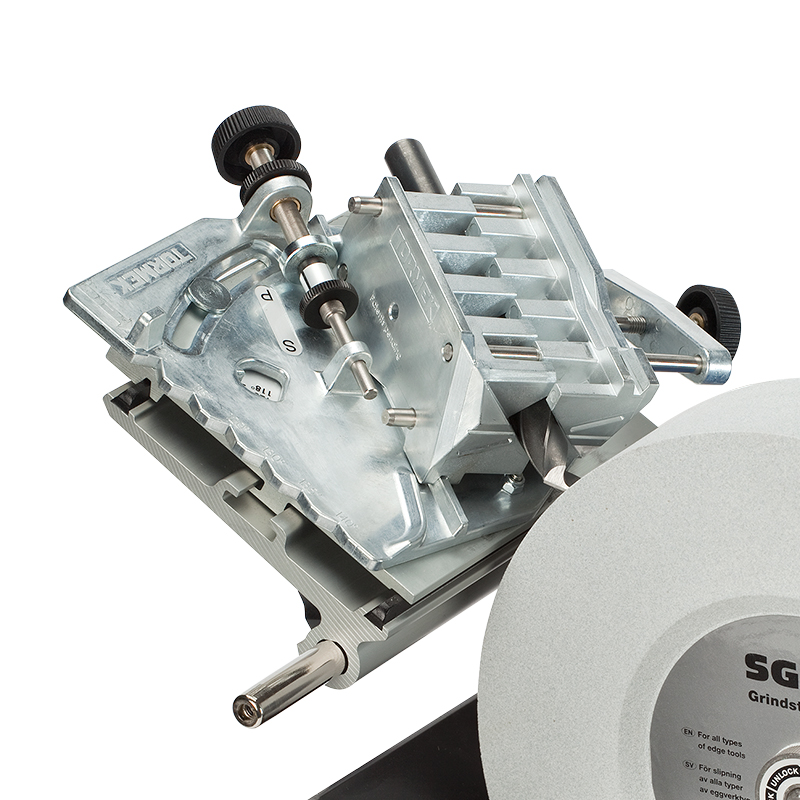

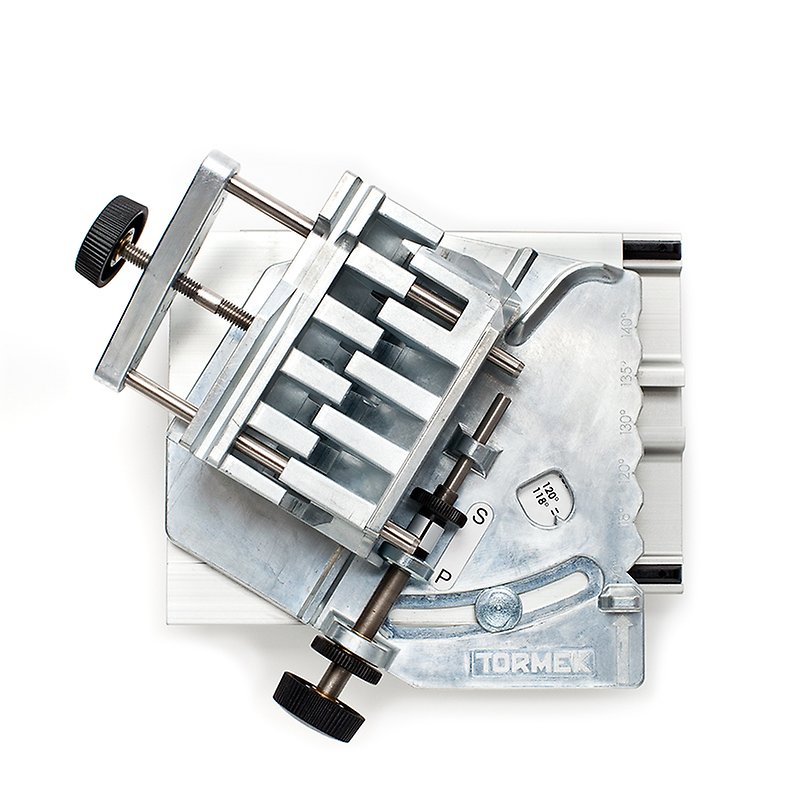

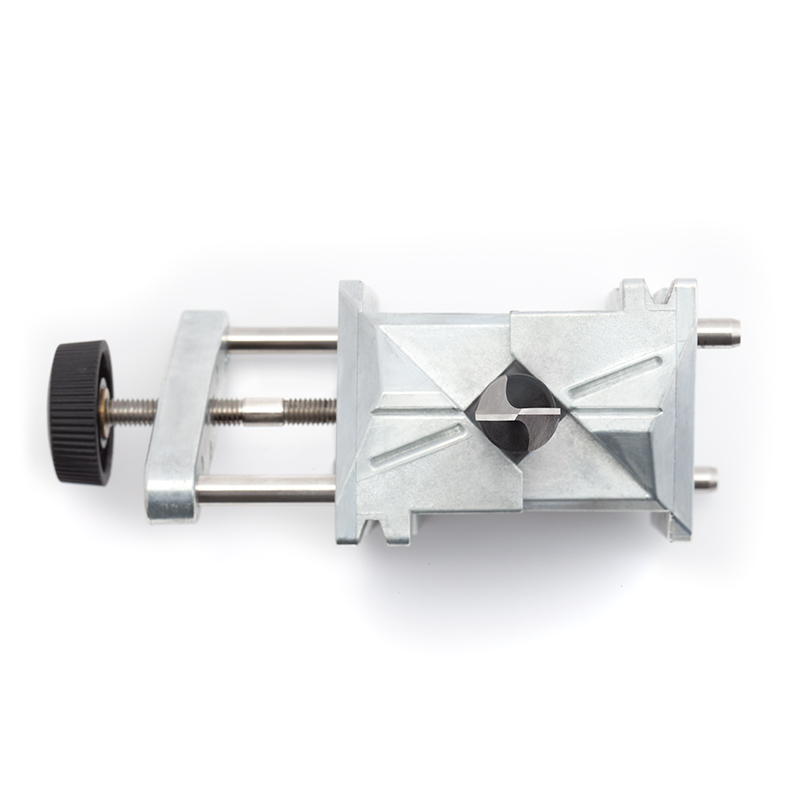

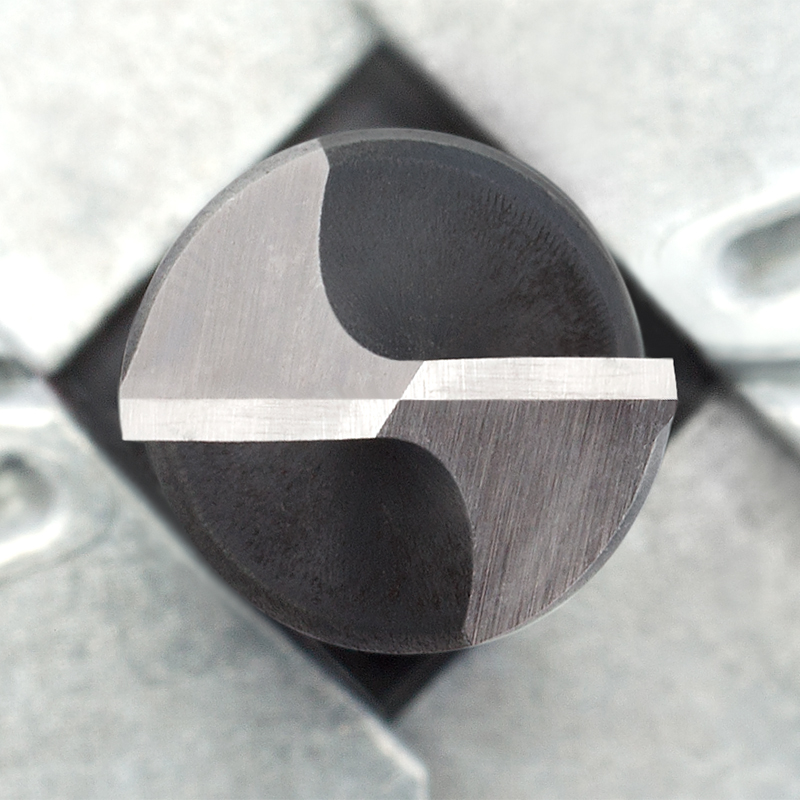

The DBS-22 Drill Bit Sharpening Attachment allows you to sharpen your drill bits from 3 mm (1/8") to 22 mm (7/8") in diameter with maximum precision and to give a four-facet point for best performance. The optimum tip and lip relief angle can be set for each drilling operation, taking into account the drill bit size and material. You can also sharpen broken bits back to the perfect shape.
The DBS-22 Drill Bit Sharpening Attachment comes fully assembled and ready to use.
- Instructions for the DBS-22 Drill Bit Sharpening Attachment
- Magnifying glass to line up the drill bit in the jig
- Jig setting template with magnets
- One tube of Tormek PTFE lubricant
Weight
Shipping weight 3.35 kg (7.39 lb)
Color
Gray/black
Material
Precision-cast zinc, stainless steel, black composite
