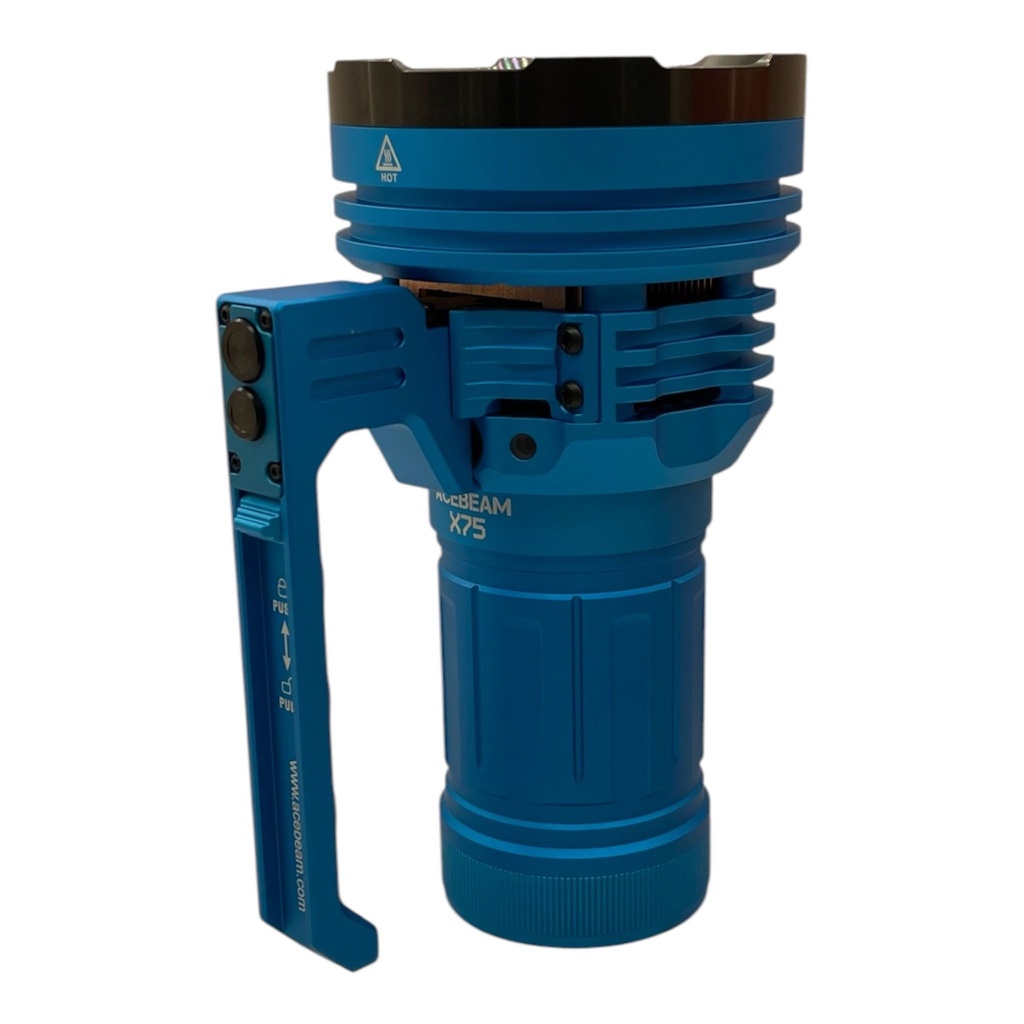

The powerful flagship Acebeam X75 Desert
searchlight from Acebeam uses 12 Cree XH-P 70.2 LEDs for a combined output of 67,000 lumens and a beam distance of up to 1,306 meters.
The included Li-ion battery pack, consisting of four 21700 3.6V batteries with a capacity of 4250 mAh each, fully charges in 1 hour via a high-speed Type-C charging port with Power Delivery protocol , delivering up to 100W of power, making this flashlight ready for use right out of the box.
A patented mechanical lock prevents accidental activation and one-handed operation make it convenient and easy to use in any situation.

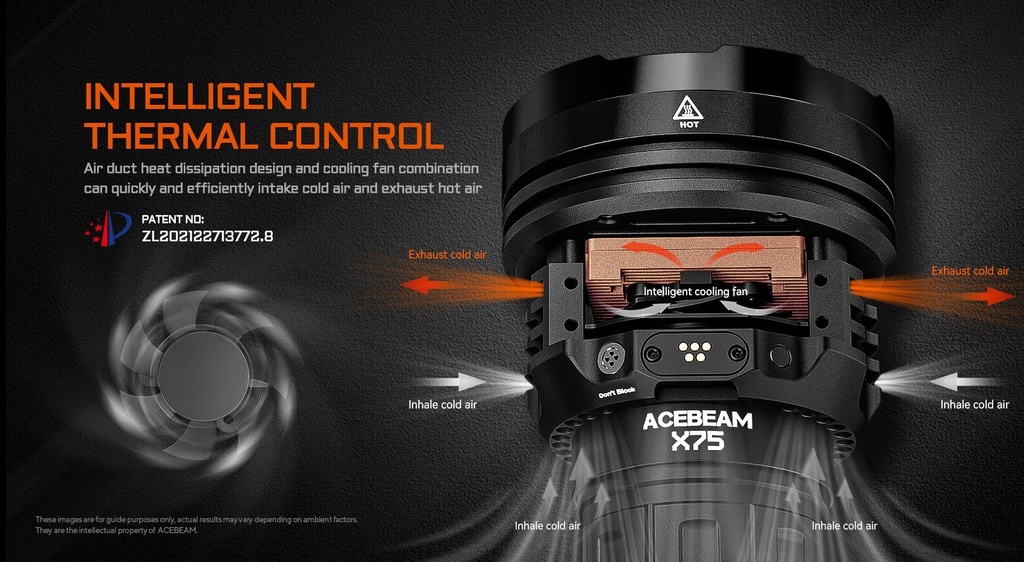

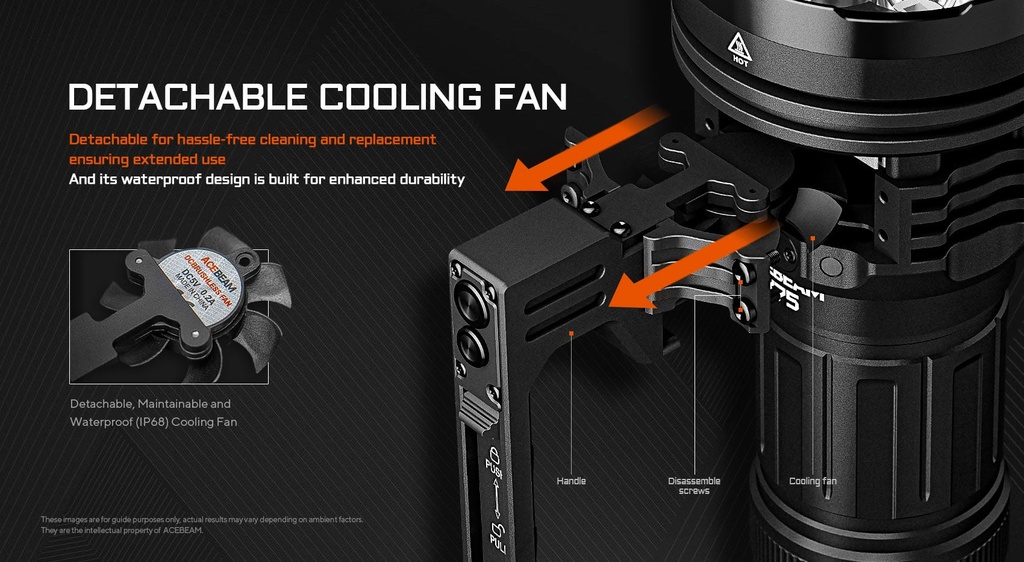

The Acebeam X75 also features active cooling via a dedicated handle featuring a low-noise, waterproof IP68 fan.

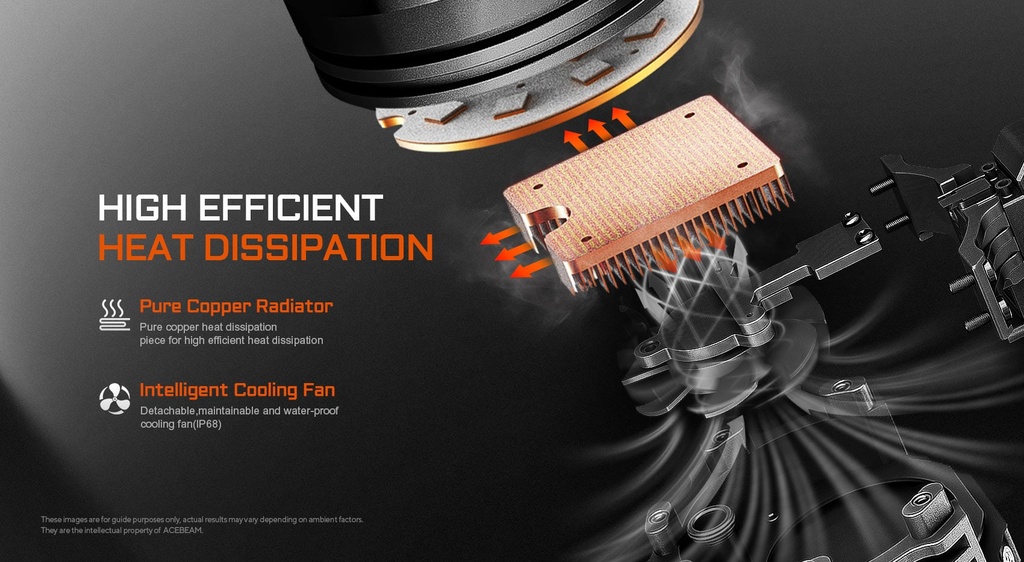

This ensures effective cooling in Power Mode via dedicated ventilation channels in the head, which include pure copper heatsinks.
The handle is made of aircraft-grade aluminum and is installed in special grooves using hex keys.
The X75 features a driver with digital brightness stabilization in all operating modes, which is controlled by buttons on the handle.
To prevent LED overheating, the flashlight features an intelligent internal temperature control system.
When the LED crystal reaches a critical temperature, the flashlight automatically reduces brightness to an acceptable level.
The flashlight body is crafted from T6061 T6 aircraft-grade aluminum with a 3rd-degree (maximum) hard anodizing finish, which protects it from scratches.
A tripod mount is included, which mounts using standard UNC 1/4'-20 threaded mounting connectors.
Technical specifications:
The light source is 12 Cree XP-H 70.3 HI cold 6500 K LEDs.
The LED lifespan is 50,000 hours (about 5 years of continuous operation).
The luminous flux is 67,000 lumens.
The luminous flux range is up to 1,306 meters.
The luminous flux intensity is up to 426,409 candelas.
The reflector is textured aluminum alloy, the beam angle is 120 degrees.
The lens is made of ultra-clear mineral glass with a double anti-reflective AR coating with 99% light transmission.
7 operating modes: 6 white brightness modes and a strobe mode.

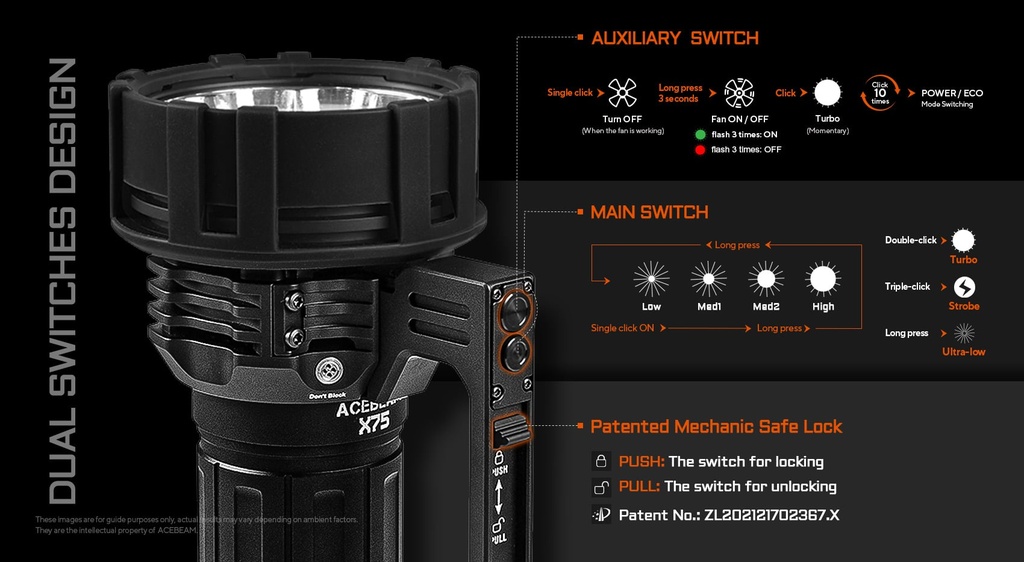

Switching between modes is carried out by a button located at the head of the flashlight with a locking function.
Radiator fins in the head of the flashlight provide effective heat dissipation.
The thermal intelligent thermal control module for overheating protection prevents high heating of the housing and degradation of the LED.
Intelligent IP68 waterproof cooling fan made of pure copper.

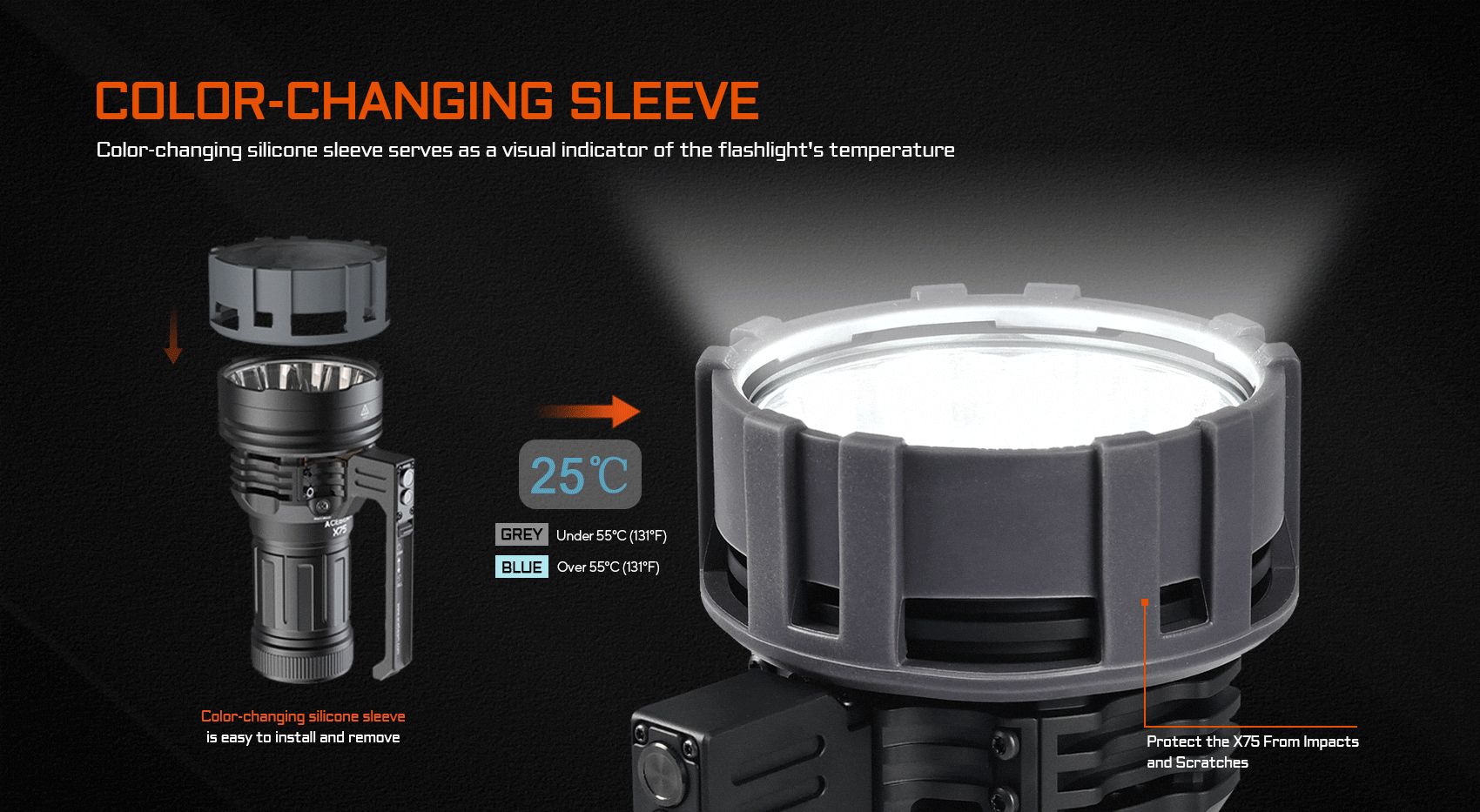

Silicone cover on the flashlight head with a changing color, which monitors the flashlight temperature and protects it from damage.
Constant brightness in all modes (digital adjustment).
Power: 14.4V / 61.2 Wh Lithium Polymer battery pack (4 batteries 21700 4250 mAh).
Charging: USB Type-C fast charging with PD60W fast charging function, 1 hour to fully charge the battery.
Power Bank function - charging external devices from the USB output with Power Delivery 100W.
Instant access to Turbo and Strobe modes.
Memory mode of the last used mode except Strobe.
Battery charge indicator.
Patented mechanical locking system to prevent accidental activation.
When using the flashlight in Turbo mode, a huge amount of heat is generated, be careful when handling the flashlight.
The flashlight features a UNC 1/4'-20 tripod mount.
The flashlight body is made of T6061 T6 aircraft-grade aluminum with a Class 3 (maximum) hard anodizing
finish. It is impact-resistant to FL1 Standard (drop protection from up to 1.2 meters).
The body is sealed to IP-68.
It is RoHS-compliant.
Equipment :
- Acebeam X75 Micro-arc Oxidation Flashlight
- Battery pack 14.4V / 61.2 Wh (4 pcs. Li-ion 21700 4250 mAh)
- Handle with fan
- 60W power supply
- USB Type-C cable
- Spare fan
- Warranty card
- Instructions
- Package
Dimensions :
- Length, mm: 176
- Head diameter, mm: 127
- Case diameter, mm: 92
- Weight with battery, g: 1240

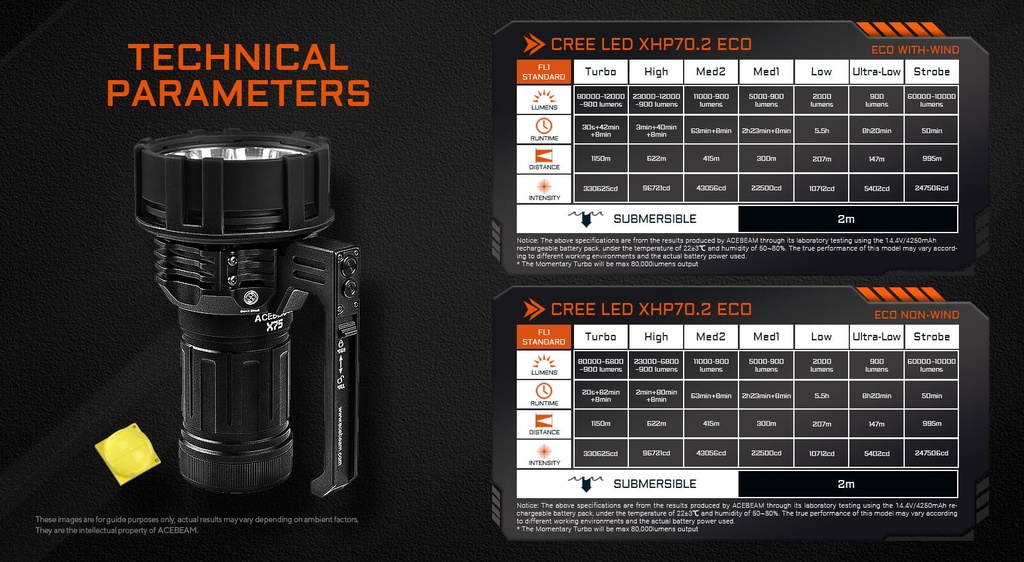

Operating modes (6500 K):
Power mode & With blowing:
- Ultra-Low: 900 lumens - 8 hours 20 minutes; 147 meters; 5,402 cd;
- Low: 2000 lumens - 5 hours 30 minutes; 207 meters; 10,712 cd;
- Med1: 5000~900 lumens - 2 hours 23 minutes+8 minutes; 300 meters; 22,500 cd;
- Med2: 11000~900 lumens - 63 minutes+8 minutes; 415 meters; 43,056 cd;
- High: 2300~17500~900 lumens - 7 minutes + 25 minutes + 8 minutes; 622 meters; 96,721 cd;
- Turbo: 67000~23000~900 lumens - 30 seconds+20 minutes+8 minutes; 1306 meters; 426,409 cd;
- Strobe: 60000~10000 lumens - 50 minutes, 995 meters, 247,506 cd;
Power mode & No airflow:
- Ultra-Low: 900 lumens - 8 hours 20 minutes; meters; 5,402 cd;
- Low: 2000 lumens - 5 hours 30 minutes; 207 meters; 10,712 cd;
- Med1: 5000~900 lumens - 2 hours 23 minutes+8 minutes; 300 meters; 22,500 cd;
- Med2: 11000~900 lumens - 63 minutes+8 minutes; 415 meters; 43,056 cd;
- High: 23000~6800~900 lumens - 4 minutes+72 minutes+8 minutes; 622 meters; 96,721 cd;
- Turbo: 67000~6800~900 lumens - 20 seconds+70 minutes+8 minutes; 1306 meters; 426,409 cd;
- Strobe: 60000~10000 lumens - 50 minutes; 995 meters; 247,506 cd;
ECO mode & With blowing:
- Ultra-Low: 900 lumens - 8 hours 20 minutes; 147 meters; 5,402 cd;
- Low: 2000 lumens - 5 hours 30 minutes; 207 meters; 10,712 cd;
- Med1: 5000~900 lumens - 2 hours 23 minutes+8 minutes; 300 meters; 22,500 cd;
- Med2: 11000~900 lumens - 63 minutes+8 minutes; 415 meters; 43,056 cd;
- High: 23000~12000~900 lumens - 30 seconds+40 minutes+8 minutes; 622 meters; 96,721 cd;
- Turbo: 67000~12000~900 lumens - 30 seconds+42 minutes+8 minutes; 1306 meters; 426,409 cd;
- Strobe: 60000~10000 lumens - 50 minutes; 995 meters; 247,506 cd;
ECO mode & No blower:
- Ultra-Low: 900 lumens - 8 hours 20 minutes; 147 meters; 5,402 cd;
- Low: 2000 lumens - 5 hours 30 minutes; 207 meters; 10,712 cd;
- Med1: 5000~900 lumens - 2 hours 23 minutes+8 minutes; 300 meters; 22,500 cd;
- Med2: 11000~900 lumens - 63 minutes+8 minutes; 415 meters; 43,056 cd;
- High: 23000~6800~900 lumens - 2 minutes+80 minutes+8 minutes; 622 meters; 96,721 cd;
- Turbo: 6700~6800~900 lumens - 20 seconds+82 minutes+8 minutes; 1306 meters; 426,409 cd;
- Strobe: 60000~10000 lumens - 50 minutes; 995 meters; 247506 cd;
